T. Ravindra Reddy1, P. Narayana Reddy2, S. Lakshmi Reddy3*, Yoshinobu Nakamura4, Satoru Kaneko5, Paolo Mele6, Taras Polek7, Tamio Endo8
1Department of Physics, AITS, Cuddapah 516003, India
2Department of Physics, Government College for Men, Cuddapah 516001, India
3Department of Physics, SV Degree College, Cuddapah 516003, India
4The University of Tokyo, 7 Chome-3-1 Hongo, Bunkyo, Tokyo, Japan
5Kanagawa Institute of Industrial Science and Technology, Shimo-Imaizumi, Ebina, Kanagawa 2430435, Japan
6Shibaura Institute of Technology, Toyosu Campus, SIT Research Laboritiries, 3-7-5 Toyosu, Koto-ku 4th Floor, Tokyo 1358548, Japan
7Institute of Magnetism of the NAS of Ukraine and MES of Ukraine, 36b Vernadsky Avenu, Kyiv 03142, Ukraine
8Japan Advanced Chemicals, 3007-4 Kamiechi, Atsugi, Kanagawa, Kanagawa 2430801, Japan
Frontier Research Today, 2019, 2, 2007
Published Online: 02 October 2019 (Article)
Nanoparticles of Ba1-x(AlxCuxFe12-x)O19 (x varies from 0 to 1) were prepared by solid-state reaction route method. The structural and morphological characterization of samples has been investigated by X-ray diffraction and TEM. Electron Spin Resonance (ESR), Mossbauer, VSM techniques were used to study the magnetic properties of the compounds. Change in the magnetic state of nanoparticles due to doping was also examined. Mossbauer studies suggest that the sample is ferrimagnetic when x equals 0 and completely paramagnetic when x euqals 1. ESR studies reveal splitting of resonance lines at certain concentrations (x) of Cu/Al. VSM and ESR studies reveal the destruction of collective magnetism when doping is increased.
Doped barium ferrite; Eelectron spin resonance; Mossbauer spectroscopy; Magnetic properties
Hexagonal ferrites are one of the most important materials for modern industrial world. These materials have been employed in the manufacture of simple permanent magnets, data storage and microwave devices1. Ba – hexaferrite, also known as M-type [(Ba, Sr)Fe12O19], has attracted particular attention because of its significant properties like magnetic magnetocrystalline anisotropy, high coercive field, and Curie temperature2. Being M-type hexaferrite, it has a complex structure where Fe3+ ions have nonequivalent positions and are separated by O2- ions. The spins of opposing iron ions are linked by interactions which take place via the intermediate oxygen atom, and this is termed as super-exchange1. In general, the magnitude of exchange depends on distance in Metal-Oxygen-Metal chain angle. The smallest interaction occurs at 90o and maximum exchange takes place at 180o. So the distortions in iron environments (oxygen polyhedrons) result in super-exchange and hence consequently change the magnetic properties. Thus the behavior of hexaferrites is similar to substituted manganites where magnetic ions of manganese interact with each other by double exchange3.
Doping is an effective method to change properties. Ba2+ (1.34 Å) and Fe3+ (0.64 Å) ions have different ionic radii. Accordingly, substitutions in different positions cause a different response. Also, Fe3+ ions of barium hexaferrites are distributed over five different sub-lattices1. There are many reports on substituted barium hexaferrites by different elements with different oxidation states and ionic radii4-10. In a number of studies, it is observed that the substitution of Al3+ in the Fe3+-site leads to an increase in coercive force (HC)4,11,12 and change in magnetic properties. Aluminum ions replace the iron ions and reduce the volume of the unit cell since ionic radius of Al3+ (0.54 Å) is less than that of Fe3+ (0.64 Å). This leads to a distortion of the oxygen polyhedrons and as a consequence, the super-exchange interaction is affected. The partial substitution of Fe3+ by Al3+ in barium hexaferrite has been studied by varying the concentration of x (0≤ х ≤4)12. These results suggest that saturation magnetization (MS) reduces and similarly coercive field growth increases with increase of aluminum concentration. Similar, results are also reported by others13. The increase of HC was established when concentration of Al is increased from 2.8 kOe at x = 0 to 4.7 kOe at x = 2. The change of magnetic properties with small and equal amount of either Al or In in Ba ferrite has been studied4. These studies reveal that HC is 14 times greater in indium doped ferrite than that in Al doped Ba ferrite. Further the total magnetic moment of samples is reduced from 20 μB (for pure Ba ferrite) to 19 and 16.7 μB for Al and In doped Ba ferrites. The authors reported that in In doped sample, distortion occurs in crystal structure due to the replacement of iron by indium ions (In3+ = 0.79 Å)4 which have greater ionic radii thus creating frustrated magnetic structure in the sample.
Copper doped hexagonal barium ferrite [BaFe12-xCuxO19] was examined14. Magnetic properties were investigated and found that when x = 0.03, the low coercive change (≈ 0.64 %) and saturation magnetization increase sharply15. Further increase of Cu doping increases saturation magnetization, Curie temperature and coercivity. Hexaferrite properties are sensitive to the method adopted in the synthesis1. Since Ba ion has large ionic radius, doping by ion having more ionic radius (≈ 1 Å) such as Ce3+, Pr3+, La3+ etc.6,16,17 can replace Ba in hexaferrite. Double doping in hexaferrite causes unexpected structural and magnetic properties5,6,18,19. So far, dual substitution of ions with large and small ionic radii of Al and Cu ions in hexaferrite was not reported. Therefore, we propose to synthesize Ba1-x (CuxAlxFe12-x)O19 ferrite via solid state route method by varying x from 0.00 to 1.00 in steps of 0.25 to study the influence of concentration of Cu/Al on the magnetic properties of the compound.
Barium hexagonal ferrite Ba1-x(CuxAlxFe12-x)O19 (x = 0.0, 0.25, 0.5, 0.75, 1.0) samples were synthesized by employing solid state route method. Generally in synthetic ferrite systems, Ba composition remains constant and is at its regular lattice site while Fe has been replaced by Cu/Al. But in the present synthesis, compositions of Ba, Cu, Al and Fe are varied.
X-ray diffractometry was performed by Philips X-ray diffractometer using Cu-Kα radiation (λ = 1.54060 Å) at room temperature. Information about morphology and particle size were obtained on Philips CM 200 transmission electron microscope operating at 200 kV and resolution 0.23 nm. ESR spectra of all the samples were recorded from 150 K to 300 K on Carl JES X3 series ESR spectrometer operating at X band frequency (υ = 9.198 GHz). 57Fe and 55Fe Mossbauer absorption spectra were recorded in transmission geometry at room temperature using a multichannel analyzer with a drive in constant acceleration mode; 57Co(Rh) source with initial activity of 20 mCi was used. Magnetic properties of the compounds were measured using vibration sample magnetometer (VSM). The magnetization loops (M versus H) of all samples were carried out at 5, 150, 200, 255 and 300 K using VSM in a fields up to 80 kOe.
Result and Discussion
Micro and crystal structure
Figure 1 presents the X-ray diffraction patterns of all barium ferrite samples of Ba1-x (CuxAlxFe12-x)O19. The X-ray diffraction patterns of all the species are similar with very sharp peaks which indicate that all have hexagonal crystal structures. No additional phases and impurities are found.
Using X-ray data, lattice constants are calculated and are in the range of 5.8827 Å to 5.777 Å and 23.195 Å to 23.00 Å for a and c respectively. The lattice constant a is found to decrease with increase of Cu/Al concentration (x), the lattice constant c decreases when x is increased up to 0.25 and then remains constant at concentration x = 0.50, 0.75 and 1.00. This indicates that the change of the minor axis (a-axis) is larger than that of major ‘c’ axis for the substitution of Cu2+/Al3+ ions. This behavior is attributed to the substitution of Fe3+ ions which are of larger ionic radii (0.064 nm) compared with Al3+ ions (0.054 nm), and the substitution of Ba2+ ions which are of larger ionic radius (0.134 nm) compared with Al3+ ions (0.054 nm) and Cu2+ ions (0.078 nm). The ionic radii sum of Al3+ ions and Cu2+ ions are 0.132 nm and is almost the same as Ba2+ ionic radius. Thus in addition to normal doping of Al3+ in Fe3+, double doping of Al and Cu into Ba site takes place. Hence the noticeable value of cell size decreases and resulting low cell constant. Using Debye-Scherrer equation, the particle size is evaluated from the line broadening of the peak (203) which changes from 125 to 100 nm.
Figure 1. XRD pattern of Ba1-x(CuxAlxFe12-x)O19 compound.

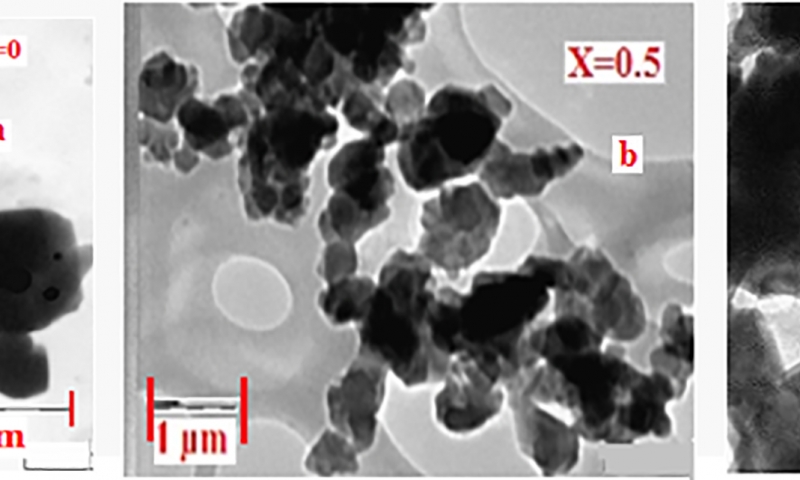

Figure 2(a-c) shows TEM images of the un-doped (x = 0.00), doped (0.50) and maximum doped (x = 1.0) samples respectively. It is noticed that the hexaferrite particles are well defined with polygonal octahedral, tetrahedral and bipyramidal shapes (shown in Figure 2(a) at x = 0.0) and are well joined. From nano-chemistry point of view, the adjacent particles which have common crystallographic orientation collide each other leading to coalescence. Adjacent primary particles attach to each other and form aggregates.
Figure 2. TEM images synthesized Ba1-x(CuxAlxFe1-x)O19.
It is evident from Figure 2(b) (x = 0.50) that the particle size decreases with doping when compared to undoped ferrite. When doping is maximum, x = 1.0, as shown in Figure 2(c), the particle size is further reduced. The particles prepared from higher Cu/Al concentration are discrete. The decrease in agglomeration is due to the replacement of Fe3+ ions by Al3+ ions. Further replacement of Ba2+ ion by both Cu2+ and Al 3+ ions leads to decrease in radii of cations. This results in the decrease of grain size. Hence the lattice constant decreases. This suggests that adjacent particles which do not have common crystallographic orientation do not collide with each other and thus they are appearing as separate particles. Also it is seen that the particle size decreases with increase of Cu/Al concentration. From Figure 2, it is observed that the particle size is drastically affected with increase of Cu/Al composition. The particle size distribution is broader and indicates the polycrystalline nature. The particles size varies from 98 nm, 95 nm, 69 nm, 78 nm and 61nm when x is increased from x = 0.00 to 1.00 in steps of 0.25. The particle size is large at x = 0.0 and small at x = 1.0. The ratio of particle size is about 10:6 (without doping vs maximum doping).
Bulk hexaferrite BaFe12O19 is a classic magnetic material with Tc = 725 K and exhibits very high uniaxial anisotropy. When the same compound is in nanoscale form, its magnetic state changes drastically1,20.
Figure 3 shows magnetization (M emu/g) versus temperature (T/K) behavior of Ba1-x(CuxAlxFe12-x) O19 (x= 0.0 to 1.0) samples under both Zero-Field-Cooled (ZFC) and Field-Cooled (FC) conditions in an applied magnetic field of 80,000 Oe. ZFC curves were obtained by cooling the sample from 300 K to 5 K without applying an external magnetic field. In the case of FC temperature of the sample after reaching 5 K, an 80,000 Oe magnetic field was applied and the magnetization was recorded as the temperature was increased. From these curves blocking temperature is known. This is the temperature at which branching of ZFC and FC curves merge together or where a maximum in magnetization in the ZFC data is seen.
Figure 3. Temperature dependence of M(T) of substituted Ba-ferrite.
In the present study nearly temperature independent magnetization behavior have been seen between 300 K to 150 K except for x = 0.50. For this compound raise in the magnetization below 250 K was observed and attributed to paramagnetic phase. Below TB magnetic susceptibility decreases with decrease of temperature. This behavior is characteristic of super paramagnetism present in the compound.
As can be seen from Figure 3, the un-doped sample (x=0.0) shows a high magnetization when compared to the doped samples; it changes slightly with increase of temperature. A similar trend is observed in doped sample when x = 0.25. In this compound the magnetization decreases by about 40% relative to the pure ferrite. In this compound TB is noticed as 150K. The magnetization is zero beyond T ≥ 150 K. When x ≥ 0.5, a qualitatively different dependence inherent to super-paramagnetic state is observed. In these compounds TB is found to be approximately 25 K, 20 K and 10 K for x= 0.50, 0.75 and 1.00 respectively. These results suggest that TB decreases with the increase of Cu/Al content. At room temperature, no magnetic property is noticed with x= 0.75 and 1.0.
In the present case, when x = 0.75, the magnetization is almost zero at T ≥ 200 K. Previous reports12 indicate that substitution of Al even up to x = 4.0 in the compound results in weak magnetization. Using Mossbauer spectroscopy, they explained that Al ions preferentially occupy the octahedral site 4f2, 2a,12k and 4f1 at x ≤ 2.0.
The magnetization measurements (M verses H) of all Ba1-x(CuxAlxFe12-x)O19 (x= 0 to 1.0) nano samples are carried out at 5, 100, 200, 255 and 300 K using vibrating sample magnetometer (VSM) in a field of 80000 Oersted. The measured hysteresis loops for Ba1-x(CuxAlxFe12-x)O19 samples as a function of the applied magnetic field are shown in Figure 4(a-b). Magnetization is normalized to the maximum value for each curve at 30 kOe for better data comparison. From Figure 4(a), we notice that there are three different cases: For undoped BaFe12O19 sample (x=0.0), M(H) curve shows no hysteresis and its residual magnetization is an indication of superparamagnetic state 21. Completely doped sample (x =1.0) M(H) show typical behavior of paramagnetic nature and its magnetization linearly increases with increase of magnetic field. In all other cases, the compound shows combined behavior. Thus, on one hand, the symmetric loop of hysteresis is clearly visible and on the other hand, the magnetization does not reach to saturation even at high field. When temperature increases to 300 K, there are no qualitative changes in M – H curves. When x = 0.50, there is a decrease in residual magnetization. Further when x = 0.25, the residual magnetism Hc is 0.3 kOe at 100 K and it decreases to 0.15 kOe at 300 K.
Figure 4. Ba1-x(CuxAlxFe12-x)O19 hysteresis loops for different temperatures.
In BaFe12O19 nano ferrite system, there are five non-equivalent sub-lattices, of which three are octahedral (2a,12k, and 4f2), one tetrahedral (4f1) and one trigonal bipyramidal (2b)22. In the Ba1-x(CuxAlxFe12-x)O19 nano compounds, Fe3+ ions are partially replaced by an equal amounts of Cu2+ and Al3+ ions, similarly Ba2+ ions are replaced by both Al3+ and Cu2+ ions. Now when the diamagnetic Al3+ ions are substituted by Fe3+ ions, it results in decrease of the magnetic saturation (Ms) value because of the super exchange interaction (Fe3+-O-Fe3+) since the Al3+ ions preferentially occupy the octahedral 2a site followed by 12k and 4f2 sites23. Introduction of Cu2+ and Al3+ into the tetrahedral site does not change the net magnetization of the ferrite compound but replacement of Cu2+ ions in octahedral sites resulted in the variation of the net magnetization of the materials24. Thus all the magnetic properties are found to decrease with the increase of Cu/Al contents, which is due to the occupation of the doped cations at the octahedral sites (12k and 2a) having a spin of electrons in an upward direction.
Previous reports25 indicate that substitution of Cu/Al in tetrahedral and octahedral sites in cobalt ferrite lowers the magnetization values. In our compounds, similar trend is noticed suggesting that Cu/Al doping enters both tetrahedral and octahedral sites which results in decreasing of the magnetic properties.
It is well known that the size of nanoparticles has a strong influence on the magnetic properties26. In the case of our samples, it has been found that substitution affects the size of nanoparticles. This gives the possibility of partially eliminating the size effect in magnetic properties. For further investigation of the magnetic state, the method of electron spin resonance is used. This powerful method, in some cases, allows us to separate the magnetic phases of magnetic materials including complex oxides27-29.
The results of VSM measurement are confirmed by Electron Spin Resonance spectroscopy. ESR spectra recorded for barium ferrite powder Ba1-x (CuxAlx Fe12-x O19) in the range 150 K to 300 K are shown in Figure 5. Fe3+, a d5 ion with 6S5/2 spin state splits into three Kramer’s doublets, separated by nearly 1.0 cm-1. In this case, only the lowest doublet is populated and one can observe resonances at g = 9.014,15,30,31. On the other hand, if the middle Kramer’s doublet is also populated, a g value of 4.29 is expected. If third doublet is also populated, g values ranging from 0.3 to 4.29 can be seen.
ESR spectra recorded for nano powder (BaFe12O19) in the range 150 K to 300 K is shown in Figure 5(a). It is seen that only a resonant signal with strongly symmetric resonance at all temperatures with same g value of 2.12, varying line intensity and width is noticed. It is attributed to the ions Fe(III) distributed in octahedral coordinate sites. It is ascribed to the ferrimagnetic resonance exhibited by Fe(III) cations in the ferrite at different interstitial sites that couple anti-ferromagnetically due to a super exchange interaction17,29,32. The line-width of EPR signal may be due to magnetic dipole interactions among the particles or super exchange interactions between the magnetic ions through the oxygen ions. If dominant dipole interactions are present in the compound large line-width and g-factor occurs, whereas super exchange interactions are dominant small-line-width and lower g-values are observed19,33. Occurrence of narrow peak-to-peak line-width at room temperature in the sample may be due to dominant super exchange interaction. As Cu/Al doping progresses, line splitting is observed. The similar results were observed by the authors27.
Figure 5. EPR spectrum of nano Ba1-x(CuxAlxFe12-2x)O19 powder.
EPR spectra of nano (Cu0.50Ba0.50)(Al0.50Fe11.50)O19 recorded in the range 150 to 300 K is shown in Figure 5(b). The spectrum is characteristic of Fe(III) and Cu(II). The calculated g values are 4.0, 2.25 are ascribed to Fe(III) and Cu(II) respectively. In particular at 250 K the observed g values are 2.74 and 2.18 which may be due to the superimposition of Fe(III) resonant signal with g ≅ 2.18.
EPR spectra of nano (Cu0.75Ba0.25)(Al0.75Fe11.25)O19 recorded in the range of 150 K -300 K is shown in Figure 5(c). The spectrum is resolved with characteristic of Fe(III) and Cu(II) signals. At 250 K, the observed resonant signals give g values 5.67, 3.65 and 2.25 which are ascribed to Fe(III) and Cu(II) respectively. This suggests that as Cu/Al concentration increases the nano compound reducing its ferromagnetic character and slowly converting into super paramagnetic nature. Further we notice that the Cu is entering into tetragonal distortion34.
EPR spectrum of completely doped Cu(AlFe11)O19 nano compound recorded in the temperature range of 150 K to 300 K is shown in Figure 5(d). The spectrum is well resolved with five resonant signals ranging from low to high field. These five resonant signals indicate that the compound may have five Fe(III) sites. These signals are due to Fe3+ and Cu2+. Thus the compound is super-paramagnetic in nature. This is explained as follows: It is assumed that Ba2+ is totally replaced by Cu2+ and only one Fe3+ is replaced by diamagnetic Al3+ ions in the unit cell. Thus paramagnetic behavior of Cu2+ is dominated. From the spectrum, the g values obtained for Cu2+ are g11 = 2.70 and g⊥ = 2.27 which indicate that Cu2+ is in tetragonal distortion. Tetragonal cupric complexes with D4h generally have g11 (corresponding to the magnetic field along the Z axis of the complexes) > g⊥ >2.04 have the ground state dx2-y235-37. In the present case g11 > g⊥ > 2.00 (2.70 > 2.27 > 2.0036) and hence the ground state is 2B1g (dx2-y2). Using this data, a new parameter G=(g11 - ge)/(g⊥ - ge) is defined38 and calculated as ≅ 2.61. If G value falls in between 3 and 5, the unit cell contains magnetically non-equivalent ions. If G value is less than 3, the exchange coupling among the magnetically non equivalent Cu(II) ions in the unit cell is not very strong. If G is greater than 5, a strong exchange coupling takes place among the magnetically non equivalent Cu(II) ions in the unit cell39-42 . In the present case G is less than 3.0 (observed values is 2.61), which indicates that the unit cell contains magnetically non-equivalent ions and the coupling is not very strong. As the ferrite contains a very high percentage of iron, the resonant signals due to Fe3+ are also noticed with g values at 9.0, 4.96, 2.04. Thus the EPR results indicate that the CuAlFe11O19 ferrite nano-crystal is in distorted octahedron structure. The resonant signals observed at higher magnetic field shown in Figure 5(d) have g values of 1.20 and 0.90. Such a low g values may not be due to Cu(II). Since the compound contains Cu, Al, Fe and O2-. Generally a free radical O2- gives a resonant signal around DPPH. Also Al is diamagnetic. Hence the resonant values are not due to Al, O2- and Cu(II). Thus these are assigned to Fe(III) which is occupied by third Kramer’s doublet given in the theory earlier. Thus the compound with x = 1.0 is completely paramagnetic. This result confirmed the magnetic measurements shown in Figure 4. The sample with complete substitution has zero magnetization at 200 K and as the concentration of Cu/Al increases, saturation magnetization (Ms) also increases.
From Figure 4(b) (х = 0.5), the temperature evolution of the magnetic state is observed. At a low temperature, the almost symmetric resonance line is observed. However, as temperature progresses the appearance of an additional signal is observed. At 300 K, two clear lines are observed. This suggests that the samples exhibit a weak ferromagnetic nature and significant paramagnetic nature (remanence is equal to 7 % of normalized M). But from Figure 4(a), it is observed that the ferromagnetic behavior is large (30 %) at low temperature. Thus these results suggest that coexistence of two magnetic phases in the compound.
55Fe Mossbauer absorption spectra of hexagonal ferrite system Ba1-x(CuxAlxFe12-x)O19 for x = 0.0 and 1.0 were recorded at room temperature. The result is shown in Figure 6. It can be seen from Figure 6(b) that the spectrum of BaFe12O19 exhibits a superimposition of two Zeeman sextets, which indicates the ferrimagnetic behavior of the sample. The sample is polycrystalline in nature and the presence of any texture is unlikely; the widths and heights of the six lines of each sextet are constrained during fitting so that the area ratio of the lines (1,6): (2,5):(3,4) becomes 3:2:1. One sextet (outer) corresponding to a higher magnetic field is attributed to Fe3+ ions in the octahedral (B)-site and the other sextet (inner) corresponding to the lower magnetic field is attributed to Fe3+ ions in the tetrahedral (A)- site. For the sample, BaFe12O19, the sextet with lowest isomer shift (IS) (0.34 mm/s) is attributed to Fe3+ ions in tetrahedral sites. The other sextet with higher IS (0.45 mm/s) is attributed to Fe3+ ion in the octahedral site (B). The isomer shift of octahedral sites is greater than that in the tetrahedral site and is in agreement with the reported data43. Further, the quadrupole splitting (QS) observed for the tetrahedral site is greater than that of the octahedral site, which indicates that the tetrahedral site is higher asymmetric for Fe3+. Also the observed values (0.45 and 0.34 mm/s) of isomer shift (δ) are significantly less than the expected value, 0.5 mm/s for the Fe2+ ions44. Hence, the Mossbauer spectrum of pure Ba ferrite is not affected by the relaxation process. Thus the presence of Fe2+ ions in the present ferrite system is ruled out. Therefore the electron exchange interaction (Fe2+↔ Fe3++ e-) does not occur and hence the oxidation state of Fe3+ remains unchanged during the synthetic process. Decrease in isomer shift may indicate lowering of coordination number of Fe3+ ions which is usually small45. But the increase (0.17, 0.24 mm/s) in the quadrupole splitting indicates a loss of symmetry of Fe3+ ions to the highly distorted octahedral environment. Quadrupole splitting increases with increase of Cu/Al. These results indicate that Ba ferrite lattice shows a distortion. The area ratio of Fe3+ octahedral to the tetrahedral site is obtained from the Mossbauer spectra BaFe12O19 is 39.7/60.9 = 0.6519 which is in good agreement with that calculated from X-ray intensities (not discussed in the XRD analysis). It is observed that this ratio decreases with increasing Cu/Al concentration suggesting a decrease in ferrimagnetic behavior and converting the same into paramagnetic12.
Figure 6(a) shows the Mossbauer spectrum (MS) of maximum substituted Cu/Al concentration in the ferrite. The presence of doublet indicates the characteristic features of paramagnetic behavior. The relaxation of paramagnetic nanoparticles at a faster rate than that of MS measurement time (10-9 s) causes in double. A significant change in the isomer shift (0.24 mm/s) of ferrite is observed with progressive doping of Cu2+/Al3+ ions. This indicates that the s-electron charge distribution of Fe3+ ion is influenced by Al substitution. The sample with x = 1.0 is paramagnetically relaxed, and the relaxation in these sample decreases while intensity of the paramagnetic doublet increases. This may be due to the interaction of the electric field gradient (EFG) with the quadrupole moment of 57Fe nucleus and the reduction of interaction between Fe ions and octahedral Al3+ ions. The analysis of the data shows that quadrupole splitting (0.66 mm/s) increases with the increase of doping. The quadrupole doublet pattern clearly shows that the sample exhibits paramagnetism. The results obtained are in consistent with the results of the vibrational sample magnetometer and electron paramagnetic resonance spectroscopy.
Figure 6. Mossbauer absorption spectra of system (a) BaFe12O19 and (b) CuAlFe11O19.
Nano-size particles of Cu/Al substituted barium hexaferrite Ba1-x(CuxAlxFe12-x)O19, х = (0.0 – 1.0) have been synthesized by solid-state route method. X-ray diffractometry and TEM showed that the size of synthesized nanoparticles is about 100 nm and the doping by Cu/Al leads to a large decrease in their sizes. Magnetic properties are found to decrease with the increase of Cu/Al content which is due to the occupation of the doped cations at the octahedral and tetrahedral sites. The magnetization of the un-doped sample is high and is very slightly dependent on temperature. At the same time, magnetization of maximum-doped (x = 1.0) sample is weak. The study of M(H) dependence of BaFe12O19 showed that there is no residual magnetization in the sample and shows almost no hysteresis. When x = 1.0 the sample is completely paramagnetic. This is confirmed by the linear dependence of magnetization and EPR studies which has a low value. At intermediate concentrations (0 < x < 1), they show a small loop of hysteresis where coercivity (HC) was up to 300 Oe, but they do not reach saturation in large fields. This suggests the coexistence of strongly (ferrimagnetic) and weakly (paramagnetic) behavior which is confirmed by ESR. Mossbauer spectroscopy further confirmed that nanoparticles of un-doped samples have strong-magnetic properties (ferrimagnetic) and completely doped (x = 1.0) samples have weak magnetic properties (paramagnetic). Considering the results and literature data, we assume that the double substitution greatly changes the magnetic properties of individual nanoparticles. This leads to the fact that the ensembles of these particles change their behavior (Super PM – PM/FM – PM).
The authors declare no competing financial interest.
 Pullar RC. Hexagonal ferrites: A review of the synthesis, properties and applications of hexaferrite ceramics. Progress in Materials Science. 2012;57(7):1191–334. doi:10.1016/j.pmatsci.2012.04.001
 Kostishyn VG, Panina LV, Timofeev АV, Kozhitov LV, Kovalev AN, Zyuzin AK. Dual ferroic properties of hexagonal ferrite ceramics BaFe12O19 and SrFe12O19. Journal of Magnetism and Magnetic Materials. 2016;400:327–32. doi:10.1016/j.jmmm.2015.09.011
 Dagotto E, Hotta T, Moreo A. Colossal magnetoresistant materials: the key role of phasearation. Physics Reports. 2001;344(1-3):1–153. doi:10.1016/s0370-1573(00)00121-6
 Turchenko V, Trukhanov A, Trukhanov S, Bobrikov I, Balagurov AM. Features of crystal and magnetic structures of solid solutions BaFe12-xDxO19 (D=Al3+, In3+; x=0.1) in a wide temperature range. The European Physical Journal Plus. 2016;131(4). doi:10.1140/epjp/i2016-16082-x
 Nikmanesh H, Moradi M, Bordbar GH, Shams Alam R. Effect of multi dopant barium hexaferrite nanoparticles on the structural, magnetic, and X-Ku bands microwave absorption properties. Journal of Alloys and Compounds. 2017;708:99–107. doi:10.1016/j.jallcom.2017.02.308
 Wearing D, Horsfield AP, Xu W, Lee PD. Which wets TiB2 inoculant particles: Al or Al3Ti. Journal of Alloys and Compounds. 2016;664:460–8. doi:10.1016/j.jallcom.2015.12.203
 Mosleh Z, Kameli P, Poorbaferani A, Ranjbar M, Salamati H. Structural, magnetic and microwave absorption properties of Ce-doped barium hexaferrite. Journal of Magnetism and Magnetic Materials. 2016;397:101–7. doi:10.1016/j.jmmm.2015.08.078
 Awawdeh M, Bsoul I, Mahmood SH. Magnetic properties and Mössbauer spectroscopy on Ga, Al, and Cr substituted hexaferrites. Journal of Alloys and Compounds. 2014;585:465–73. doi:10.1016/j.jallcom.2013.09.174
 Tyrman M, Pasko A, De La Barrière O, Mazaleyrat F. Structural and magnetic properties of an anisotropic M-type LaCo-substituted strontium hexaferrite. Razek A, editor. The European Physical Journal Applied Physics. 2015;72(2):20601. doi:10.1051/epjap/2015150099
 Trukhanov SV, Trukhanov AV, Kostishyn VG, Panina LV, Trukhanov AV, Turchenko VA, et al. Effect of gallium doping on electromagnetic properties of barium hexaferrite. Journal of Physics and Chemistry of Solids. 2017;111:142–52. doi:10.1016/j.jpcs.2017.07.014
 Luo H, Rai BK, Mishra SR, Nguyen VV, Liu JP. Physical and magnetic properties of highly aluminum doped strontium ferrite nanoparticles prepared by auto-combustion route. Journal of Magnetism and Magnetic Materials. 2012;324(17):2602–8. doi:10.1016/j.jmmm.2012.02.106
 Dong Hyeok Choi, Sang Won Lee, Sung Yong An, Seung-Iel Park, In-Bo Shim, Chul Sung Kim. Mossbauer studies and magnetic properties of BaFe12-XAlXO19 grown by a wet chemical process. IEEE Transactions on Magnetics. 2003;39(5):2884–6. doi:10.1109/tmag.2003.815736
 Shayan A, Abdellahi M, Shahmohammadian F, Jabbarzare S, Khandan A, Ghayour H. Mechanochemically aided sintering process for the synthesis of barium ferrite: Effect of aluminum substitution on microstructure, magnetic properties and microwave absorption. Journal of Alloys and Compounds. 2017;708:538–46. doi:10.1016/j.jallcom.2017.02.305
 Vadivelan S, Victor Jaya N. Investigation of magnetic and structural properties of copper substituted barium ferrite powder particles via co-precipitation method. Results in Physics. 2016;6:843–50. doi:10.1016/j.rinp.2016.07.013
 Vinnik DA, Tarasova AY, Zherebtsov DA, Mashkovtseva LS, Gudkova SA, Nemrava S, et al. Cu-substituted barium hexaferrite crystal growth and characterization. Ceramics International. 2015;41(7):9172–6. doi:10.1016/j.ceramint.2015.03.051
 Ounnunkad S. Improving magnetic properties of barium hexaferrites by La or Pr substitution. Solid State Communications. 2006;138(9):472–5. doi:10.1016/j.ssc.2006.03.020
 Mosleh Z, Kameli P, Poorbaferani A, Ranjbar M, Salamati H. Structural, magnetic and microwave absorption properties of Ce-doped barium hexaferrite. Journal of Magnetism and Magnetic Materials. 2016;397:101–7. doi:10.1016/j.jmmm.2015.08.078
 Ashiq MN, Javed Iqbal M, Hussain Gul I. Effect of Al–Cr doping on the structural, magnetic and dielectric properties of strontium hexaferrite nanomaterials. Journal of Magnetism and Magnetic Materials. 2011;323(3-4):259–63. doi:10.1016/j.jmmm.2010.08.054
 Qi Y, Yang Y, Zhao X, Liu X, Wu P, Zhang F, et al. Controllable magnetic properties of cobalt ferrite particles derived from layered double hydroxide precursors. Particuology. 2010;8(3):207–11. doi:10.1016/j.partic.2010.03.008
 Trusov LA, Vasiliev AV, Lukatskaya MR, Zaytsev DD,sen M, Kazin PE. Stable colloidal solutions of strontium hexaferrite hard magnetic nanoparticles. Chem Commun. 2014 24;50(93):14581–4. doi:10.1039/c4cc03870c
 Kolhatkar A, Jamison A, Litvinov D, Willson R, Lee T. Tuning the Magnetic Properties of Nanoparticles. International Journal of Molecular Sciences. 2013 31;14(8):15977–6009. doi:10.3390/ijms140815977
 Ngo AT, Bonville P, Pileni MP. Spin canting and size effects in nanoparticles of nonstoichiometric cobalt ferrite. Journal of Applied Physics. 2001 Mar 15;89(6):3370–6. doi:10.1063/1.1347001
 Goya GF, Rechenberg HR, Chen M, Yelon WB. Magnetic irreversibility in ultrafine ZnFe2O4 particles. Journal of Applied Physics. 2000;87(11):8005–7. doi:10.1063/1.373487
 Lechevallier L, Le Breton JM, Wang JF, Harris IR. Structural analysis of hydrothermally synthesized Sr1−xSmxFe12O19 hexagonal ferrites. Journal of Magnetism and Magnetic Materials. 2004;269(2):192–6. doi:10.1016/s0304-8853(03)00591-2
 DABAGH S, ATI AA, GHOSHAL SK, ZARE S, ROSNAN RM, JBARA AS, et al. Cu2+ and Al3+ co-substituted cobalt ferrite: structural analysis, morphology and magnetic properties. Bulletin of Materials Science. 2016 19;39(4):1029–37. doi:10.1007/s12034-016-1233-8
 Kliava J, Berger R. Size and shape distribution of magnetic nanoparticles in disordered systems: computer simulations of superparamagnetic resonance spectra. Journal of Magnetism and Magnetic Materials. 1999;205(2-3):328–42. doi:10.1016/s0304-8853(99)00510-7
 Díaz-Pardo R, Bierlich S, Töpfer J, Monjaras RV. Electron spin resonance (ESR) of magnetic sublattices in Sc-substituted barium hexaferrite. AIP Advances. 2016;6(5):055202. doi:10.1063/1.4948796
 Yang J-T, Luo S-J, Xiong Y-C. Magnetic mechanism investigations on K and Mn co-doped diluted magnetic semiconductor (Sr,K)(Zn,Mn)2As2. Journal of Magnetism and Magnetic Materials. 2016;407:334–40. doi:10.1016/j.jmmm.2016.02.012
 Polek TI. Correlation of ESR line-shape and conductivity in low-level Bi doped lanthanum manganites. The European Physical Journal Applied Physics. 2017;80(2):20701. doi:10.1051/epjap/2017170198
 Sambasiva Rao P, Subramanian S. Jahn-Teller tunneling in copper(II)-doped hexaimidazole zinc(II) dichloride tetrahydrate. Journal of Magnetic Resonance (1969). 1976;22(2):191–206. doi:10.1016/0022-2364(76)90294-8
 Kedzie RW, Kestigian M. PMR Determination of transition metal ion sites and multiplicity of rare‐earth ion sites in CaWO4. Applied Physics Letters. 1963;3(5):86–7. doi:10.1063/1.1753880
 J. Smith and H.P.J. Wijn, Ferrites, John Wiley (1959) New York.
 Li L, Li G, Smith, RL, Inomata H. Microstructural Evolution and Magnetic Properties of NiFe2O4 Nanocrystals Dispersed in Amorphous Silica. Chemistry of Materials. 2000;12(12):3705–14. doi:10.1021/cm000481l
 Zwierzycki M. Transport Properties of Rippled Graphene. Acta Physica Polonica A. Institute of Physics, Polish Academy of Sciences; 2012;121(5-6):1246–9. doi:10.12693/aphyspola.121.1246
 Eaborn C. The chemistry of the copper and zinc triads. Journal of Organometallic Chemistry. 1995;490(1-2):C37. doi:10.1016/0022-328x(95)90299-t
 Gewirth AA, Cohen SL, Schugar HJ, Solomon EI. Spectroscopic and theoretical studies of the unusual EPR parameters of distorted tetrahedral cupric sites: correlations to x-ray spectral features of core levels. Inorganic Chemistry. 1987;26(7):1133–46. doi:10.1021/ic00254a032
 Attanasio D, Collamati I, Ercolani C. Complexing properties of α-nitroketones. Complexes of nickel(II) and cobalt(II). J Chem Soc, Dalton Trans. 1972;(6):772–80. doi:10.1039/dt9720000772
 Krishan S. Strong Laser Plasma Coupling. Strongly Coupled Plasmas. 1978;547–56. doi:10.1007/978-1-4613-2868-1_17
 Procter IM, Hathaway BJ, Nicholls P. The electronic properties and stereochemistry of the copper(II) ion. Part I. Bis(ethylenediamine)copper(II) complexes. Journal of the Chemical Society A: Inorganic, Physical, Theoretical. 1968;1678. doi:10.1039/j19680001678
 Tomlinson AAG, Hathaway BJ. The electronic properties and stereochemistry of the copper(II) ion. Part II. The monoamine adducts of bisethylenediaminecopper(II) complexes. Journal of the Chemical Society A: Inorganic, Physical, Theoretical. 1968;1685. doi:10.1039/j19680001685
 Bew MJ, Hathaway BJ, Fereday RJ. Electronic properties and stereochemistry of the copper(II) ion. Part VII. Mono(diethylenetriamine)copper(II) complexes. Journal of the Chemical Society, Dalton Transactions. 1972;(12):1229. doi:10.1039/dt9720001229
 Billing DE, Hathaway BJ, Nicholls P. Polarisations of the copper(II) and uranyl electronic spectra of meta-zeunerite single crystals. Journal of the Chemical Society A: Inorganic, Physical, Theoretical. 1969;316. doi:10.1039/j19690000316
 Fereday RJ, Hathaway BJ. The polarised single-crystal electronic spectra of bisdi(2-aminoethyl)-aminenickel(II) chloride monohydrate. Journal of the Chemical Society, Dalton Transactions. 1972;(2):197. doi:10.1039/dt9720000197
 Billing DE, Hathaway BJ. The crystal-field energy levels of dibarium copper(II) formate tetrahydrate and copper(II) formate tetrahydrate. Journal of the Chemical Society A: Inorganic, Physical, Theoretical. 1968;1516. doi:10.1039/j19680001516
 Mishra S, Kundu TK, Barick KC, Bahadur D, Chakravorty D. Preparation of nanocrystalline MnFe2O4 by doping with Ti4+ ions using solid-state reaction route. Journal of Magnetism and Magnetic Materials. 2006;307(2):222–6. doi:10.1016/j.jmmm.2006.04.005
This article is licensed under a Creative Commons Attribution 4.0 International License. (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.
© The Author(s) 2019
